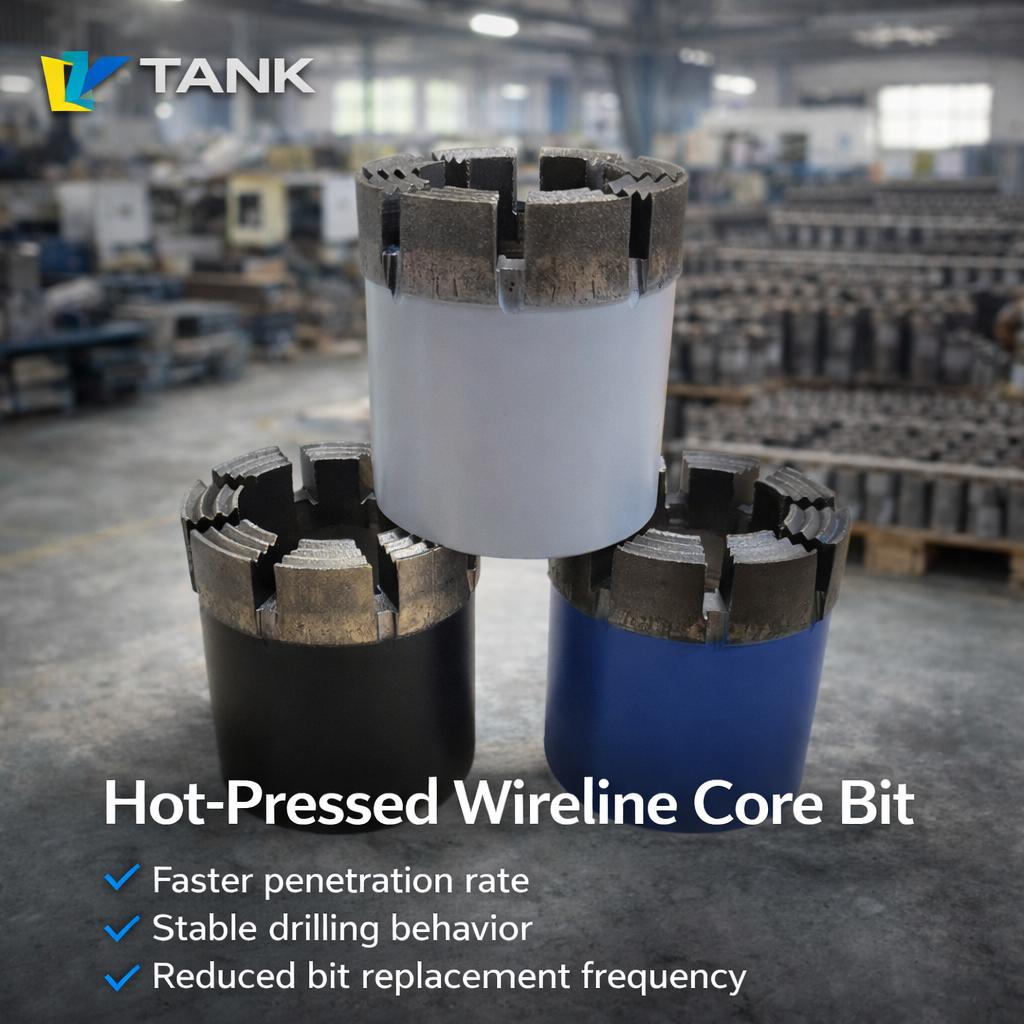

Hot-Pressed Wireline Core Bit

The Hot-Pressed Wireline Core Bit is designed for high-efficiency core drilling in mineral exploration and deep geological investigation. Manufactured using hot-press sintering technology, this bit features strong diamond retention, excellent wear resistance, and stable performance in a wide range of formations.
It is widely used in wireline drilling systems where fast core retrieval, high penetration rate, and long service life are required.

The Hot-Pressed Wireline Core Bit is specifically engineered for professional core drilling operations where productivity and core quality are critical.
Through hot-press sintering technology, diamonds are uniformly distributed and firmly bonded into the matrix, ensuring consistent cutting performance and excellent resistance to wear.

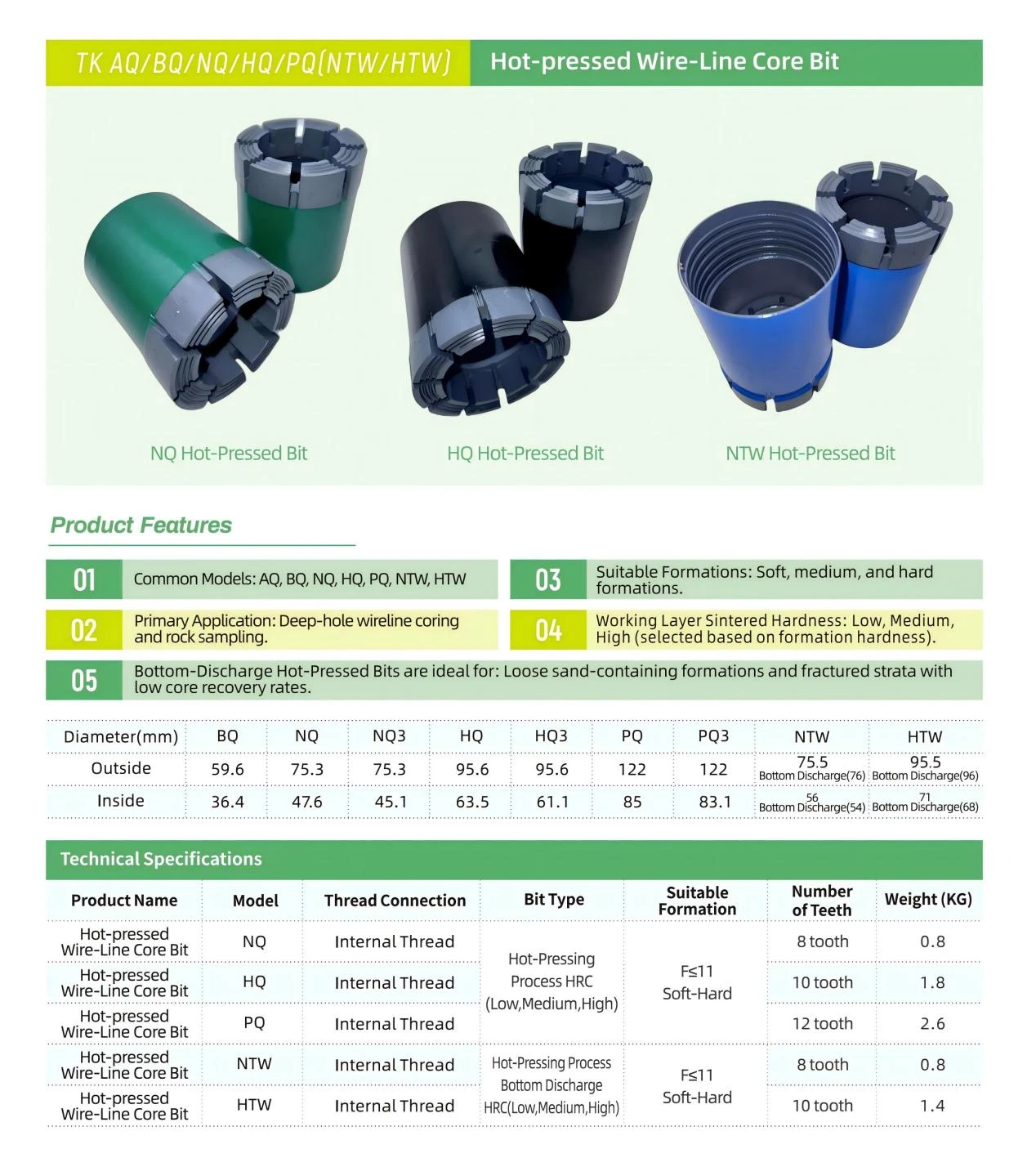

It is compatible with standard wireline systems such as BQ, NQ, HQ, PQ, NQ3, HQ3, and PQ3, making it suitable for a wide range of exploration projects.

Hot-Pressed Diamond Matrix
Strong diamond bonding
Excellent wear resistance
Stable cutting performance



Optimized Waterway Design
Efficient flushing
Reduced clogging
Improved cooling performance



Wide Formation Adaptability
Soft to hard formations
Fractured rock zones
Abrasive geological layers



High Drilling Efficiency
Faster penetration rate
Stable drilling behavior
Reduced bit replacement frequency

Mineral exploration drilling
Geological core sampling
Hydropower and dam investigation
Deep-hole wireline drilling
Mining and resource evaluation
Suitable formations include:
Sandstone
Limestone
Granite
Basalt
Mixed and fractured formations

Each hot-pressed wireline core bit is manufactured under strict quality control:
Selection of premium synthetic diamonds
Hot-press sintering under controlled temperature
Precision machining of waterways
Balance and concentricity inspection
Final performance inspection before shipment
This ensures consistent quality and reliable field performance.

Project: Gold Exploration Project – Western Australia



Geological Condition:
Hard granite mixed with fractured quartz layers



Challenges:
Rapid bit wear
Frequent bit replacement
Low drilling efficiency

The client switched to our Hot-Pressed Wireline Core Bit (HQ size).

Results:

Bit life increased by 30–45%

Improved penetration rate

Reduced drilling downtime

More stable core recovery

"The bit performance was very stable in hard formations. We reduced bit consumption significantly and improved daily drilling output."

Match bit hardness with formation type

Maintain stable WOB and rotation speed

Ensure sufficient flushing flow

Avoid dry drilling

Inspect matrix wear regularly
